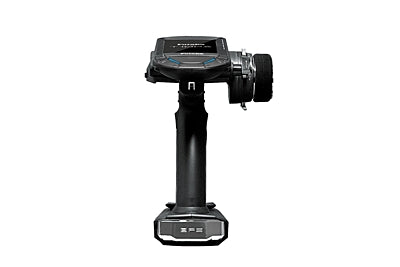

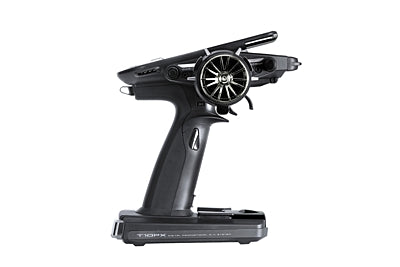

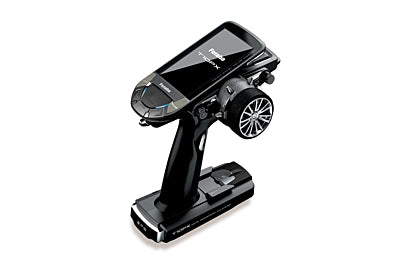

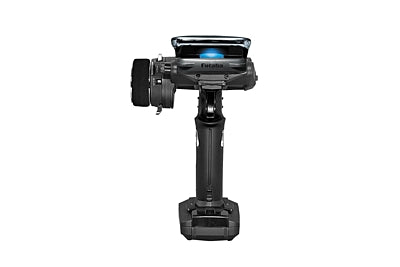

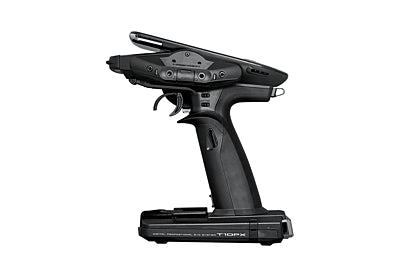

Futaba 10PX transmitter + R404SBS receiver (telemetry) - with antenna

Full color LCD touch screen

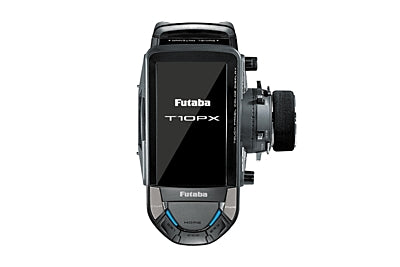

The T10PX features a HVGA 4.3-inch backlit LCD touchscreen with color display. The screen is transflective and can be used both indoors and outdoors.

F-4G system and telemetry
Equipped with an F-4G system that provides telemetry with faster response than the T-FHSS SR system.

10 channels
Up to 10 channels can be operated together with the S.BUS2 system.

T-FHSS MINIZ system
If you set the MINIZ system in the receiver settings menu, you can use the special Kyosho Mini - Z Evo receiver RA-42. The dedicated receiver RA-42 must be purchased separately.

Updatable software
The software can be updated via microSD card. The model data can also be saved on a microSD card. In addition, telemetry log data can be saved.

Model memory for 40 models
Model names can contain up to 15 letters, numbers and symbols so logical names can be used. The model copy function can be used to create a model memory with different setups.

Paddle switch + floor switch + 3 position switch
A paddle switch near the steering wheel, a 3-position switch on the handle and a floor switch on the bottom are equipped to support multiple channels and functions.

Lipo battery can be used
The optional LT2F2000B Lipo battery can be used as power supply for the transmitter. This extends the term.

Brake compound for large vehicles
The brake mixture of the front and rear wheels of 1/5GP and other large vehicles can be adjusted independently.

Steering mix
Thanks to the independent adjustment of the left and right steering servos, smooth cornering is possible.

4WS mixture for tracked vehicles and other 4WS types
This function can be used on tracked vehicles and other vehicles with 4-wheel steering.

Double ESC compound for tracked vehicles
The front and rear controls are controlled independently.

Gyro mix
The sensitivity of the Futaba car gyroscopes can be adjusted via the T10PX.

Tank mix
This feature is intended for vehicles such as tanks.

CPS mixture
The LED lighting and turn signal control with our CPS 1-channel circuit breaker can be connected to the steering and accelerator pedal through a single switch.

S.BUS servo
This is a special function that allows setting the parameters of our S.BUS servo, the settings of which are changed using the PC-Link software.

MC Link
This is a special function that allows to set the content of the link software, which allows the variable frequency of Futaba speed controllers (ESC), MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc. and other data can be changed via PC on the T10PX.

Throttle speed
A sudden release of the accelerator pedal on a slippery road will only result in the tires spinning and the model not accelerating smoothly. By adjusting the throttle function, the operation can be carried out smoothly and easily and the battery consumption is reduced.

Steering speed
If you feel that the steering servo is too fast, the servo speed (direction suppressing the maximum speed) can be adjusted.

Non-telemetry LED
When the telemetry function is turned off, to confirm that the telemetry function is not in operation.

Dial selection function
With this function, functions are assigned to the adjustment wheels (digital trim, handle wheel, rotary knob). The step size and the actuation direction can also be adjusted. It is not necessary to position the trim every time the model is called up, as all adjusters are digital.

Switch selection function
This function assigns functions to 10 switches. The actuation direction can also be adjusted.

Wheel and trigger position can be changed
The wheel position can be adjusted using an APA wheel position offset adapter.
The throttle position can be moved forward and backward.

Rubber grip
By replacing the rubber handle you can switch to a narrow handle.

Trim/control lock functions
There are locking functions that prevent the transmitter trim and dials from being adjusted and operated.

Left-handed support
The left and right installation directions of the wheel part can be reversed.

Vibrator integrated into the handle
The vibrator can be used in lap time navigation, timing, low battery and telemetry alarms.

USB port
The transmitter can be used as a game controller by connecting it to a computer with a USB cable. (Some games cannot be used.)

Transmitter characteristics:

• Wheel system, 10 channels (F-4G system), 4 channels with TFHSS-SR, T-FHSS system
• Transmit frequencies 2.4 GHz band/transmit RF output power: 100 mW EIRP
• Protocols T-FHSS-SR/T-FHSS/S-FHSS/F-4G
• Power requirement LiPo - NLF2F2000B (7.4 V)
• LiFe - FT2F1700BV2 (6.6V)
• Current consumption 350 mA or less (at T-FHSS, vibration off, backlight on)
• Transmitting antenna 1/2λ dipole
• 4.3 inch backlit color TFT liquid crystal touch panel* *When you turn on your 10PX, bright spots may appear on the screen. Your display contains an extremely large number of TFTs and is manufactured using high-precision technology. Any bright spots that may appear on your display are a feature of TFT manufacturing technology

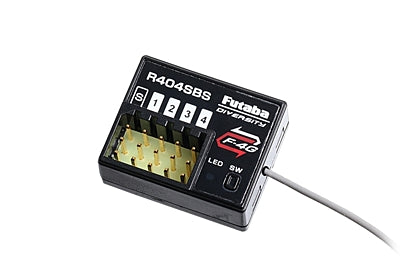

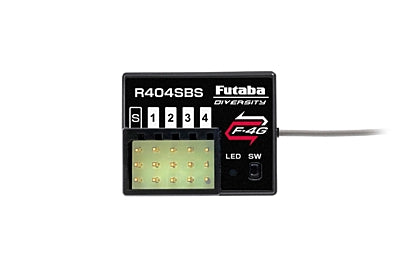

R404SBS Receiver Specifications:

• Protocol F-4G
• Dimensions 1.00×0.81×0.42 inches
• 25.5×20.7×10.6mm
• Weight 5.7g
• 0.2 ounces
• Operating voltage DC 3.7-7.4V

PACKAGE CONTENTS

• T10PX transmitter
• R404SBS receiver
• Dry battery holder
• Wheel offset adapter two sizes (APA)APA mounting screws *Spare screws are also included
• Wheel adapter 32 degrees
• Wheel angle spacer 5 deg
• Large diameter steering wheel
• Trigger guard (Lx1/Rx1)
• Grip rubber x1
• Blind Shovel x2
• Hex key
• Short manual
