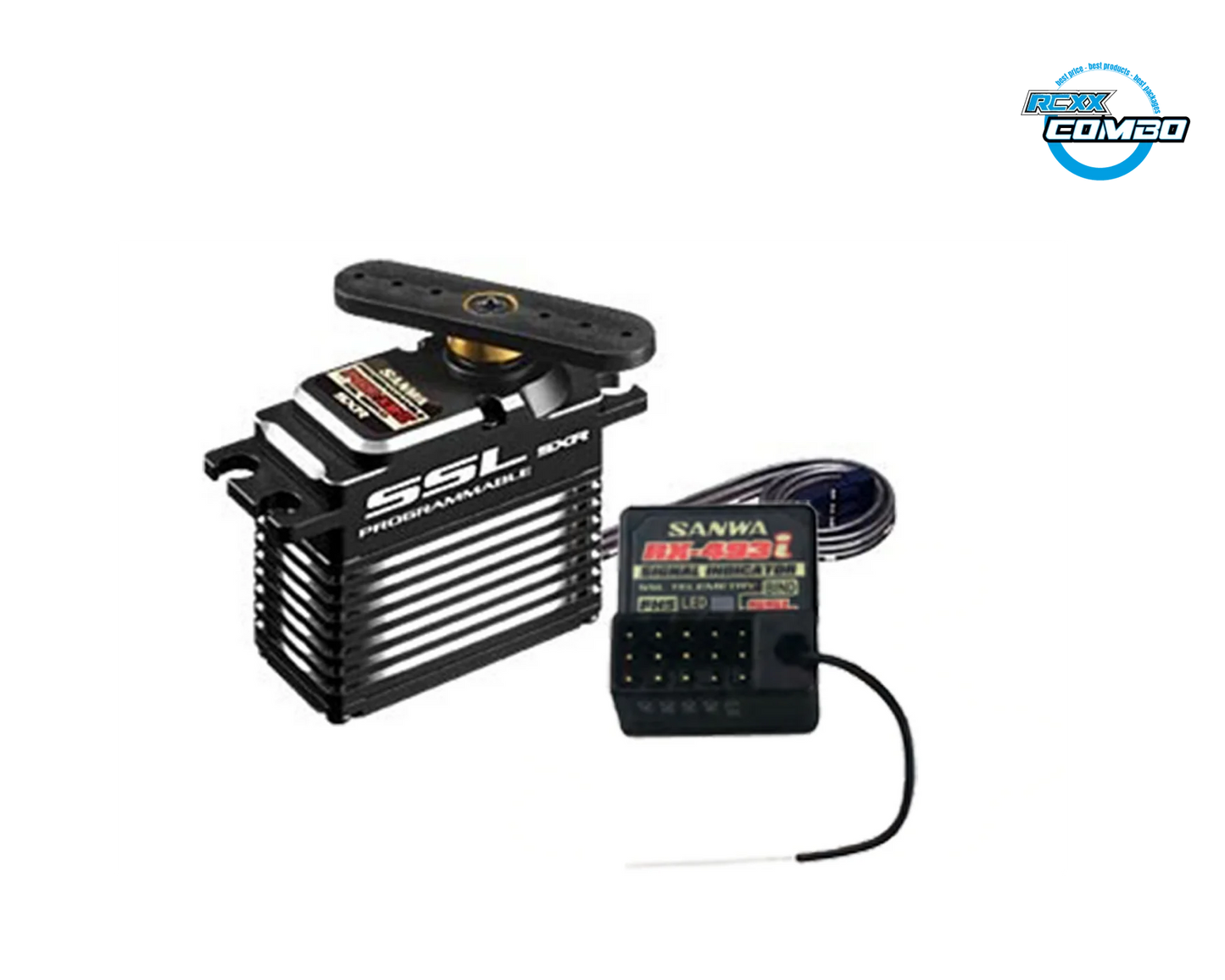

Sanwa Special Set RX-493i Receiver + PGS-XB2 Servo - 107A41376A-SXB

SPECIAL RCXX COMBO:

1x RX-493i receiver

1x PGS-XB2 Servo SXR Response

Details - Sanwa RX-493i Receiver:

• Compatible with FH5/FH5U
• Size: 26.0 x 23.2 x 14.0 mm
• Weight: 6.2 g
• Water Proof (Same as IPX4)
• Compatible receiver with INDICATOR FUNCTION.

Details - Sanwa PGS-XB2 Servo:

• Programmable Servo to be compatible with SSL & Telemetry at Launch
• Setting Adjustment by wireless from Radio
• Setting adjustment to connect servo with setting gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

# Initial Setting on Setting Gear is necessary.

• FH5U: SXR(Sanwa Xtreme Response) Mode Compatible
• SSL compatible programmable servo

# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

• PGS Setting Gear-Compatible
• Super Response (SSR) Mode Compatible
• High Response (SHR) Mode Compatible
• Li-Po 2 CELL-Compatible
• High Torque Type
• brushless motor
• Full Aluminum Case
• Full Metal Gear (Strengthening Gears)
• AL Heat Sink
• Black Harness

Setting Items:

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (Boost Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area)
• MV-FRQ (Feeling Adjustment at whole area)
• MAX-PW (Max Duty Adjustment)
• PGS-Servo Explanation

# Setting Gear is necessary for ◎setting.

Specifications:
