ISDT Q8 MAX Lipo Smart Balance Charger - DC 1000W / 33A / LCD Display / Digital / 2-8Cell

ISDT Q8 MAX Lipo Smart Balance Charger - DC 1000W / 33A / LCD Display / Digital / 2-8Cell

▶【New generation of pocket charger 】: 1000W high power, Max 33A charging current, supports 2~8S/1~16S batteries.

▶【Lights off in the dark,introducing the dark mode】 : scOS 2.0 new dark mode feature.Suitable for low light scenario,System will adjust the interface in dark tone,Reduce light damage to user's eyes.While remaining the iconic and comfortable charging display style.

▶【5V/2A USB output】 ：Q8 Max is equipped with a 5V/2A USB output to charge mobile devices.

▶【IPS screen: Low power consumption】 : 2.4" IPS screen, automatically adjustable brightness, 178° viewing angle, display clearly and clearly, even in various harsh environments or angles, as well as in strong sunshine.

▶【Advanced crafty cooling air duct 】：Active cross-flow cooling air duct design, Initiative ball bearing cooling fan, with accurately designed aluminum alloy fins and Hi-Tech silicon heat conduct pad, built up a High efficiency heat dissipation system

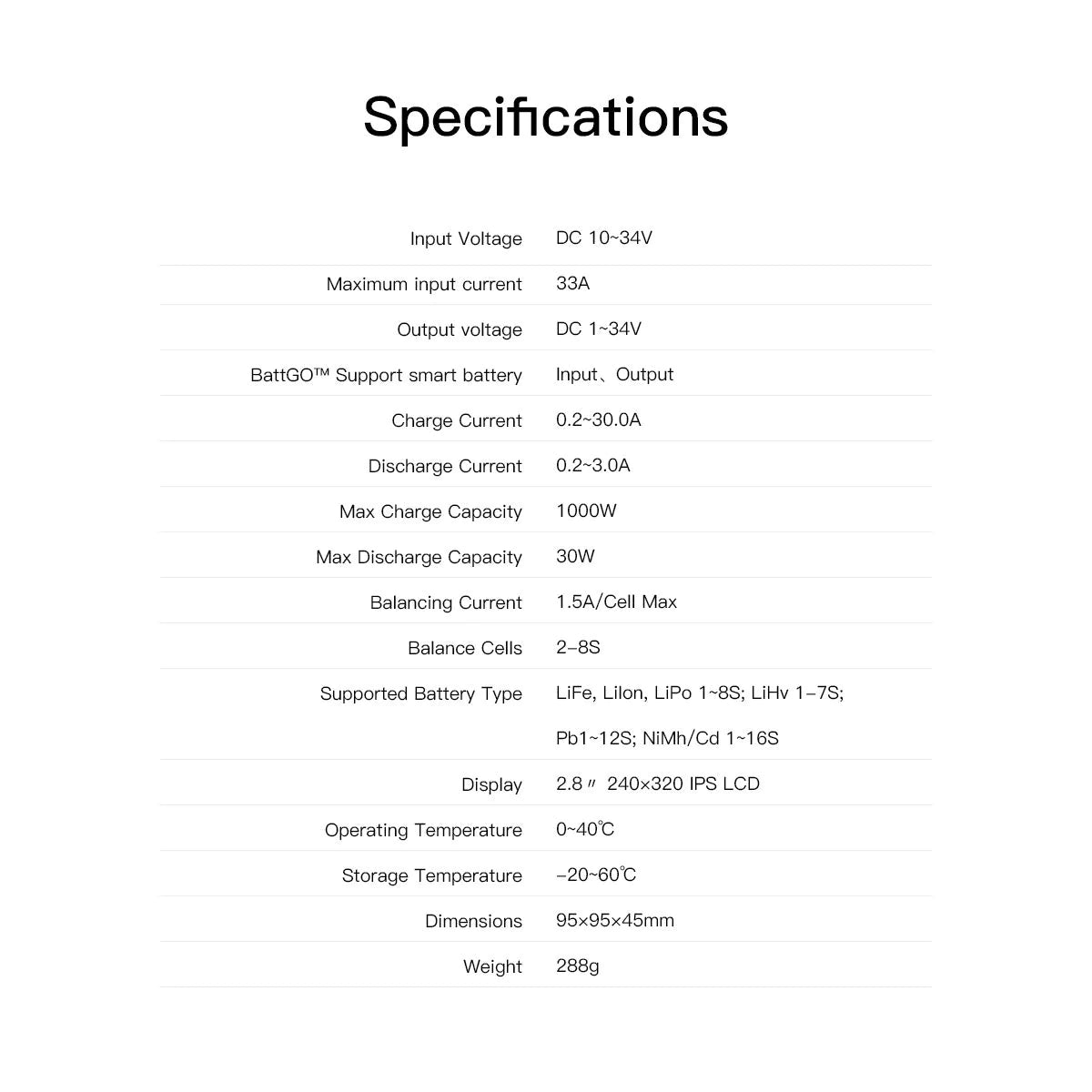

Specifications:



Input voltage: DC 10-34V

Maximum input current: 33A

BattGP Support Smart Battery: Suport input and output

Output voltage: 1-34V

Charging current: 0.2-30.0A

Discharge current: 0.2-3.0A

Maximum load: 1000 W

Max. Discharge Capacity: 30W

Compensation current: 1.5A/cell Max

Balance cells: 2-8S

Battery type: LiFe, Lilon, LiPo (1-8S), LiHV (1-7S); NiMH, Cd (1-16S); Pb (1-12S)

Display: 2.8 inch 320 x 240 IPS LCD

Operating temperature: 0-40°C

Storage temperature: -20 - 60 °C.

Dimensions: 95 x 95 x 45 mm

Weight: 288g

Languages: English, German, French, Spanish, Japanese, Traditional Chinese, Simplified Chinese



Package includes:

1 x ISDT Q8 Max Balance Charger
