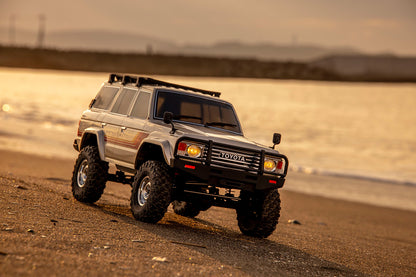

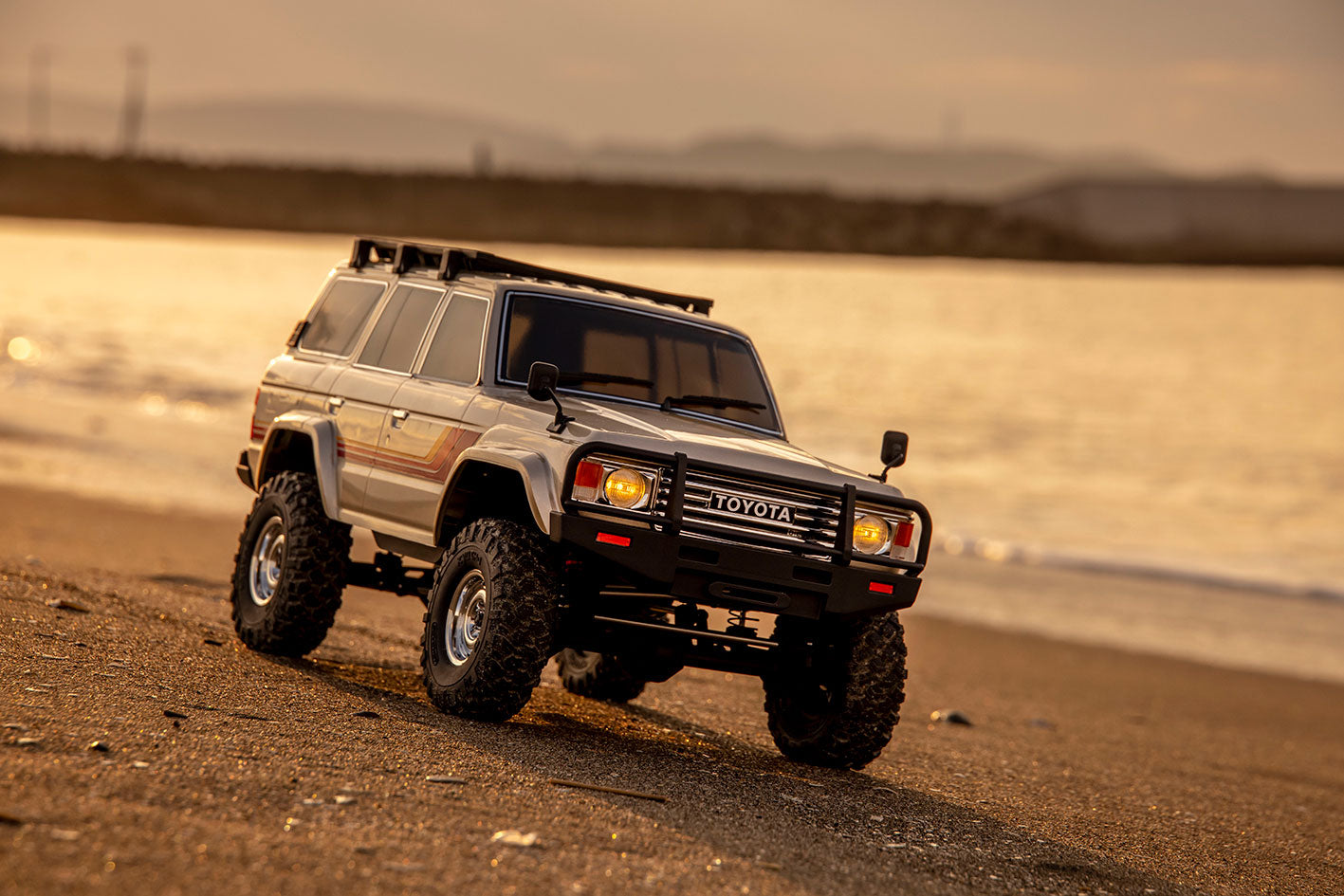

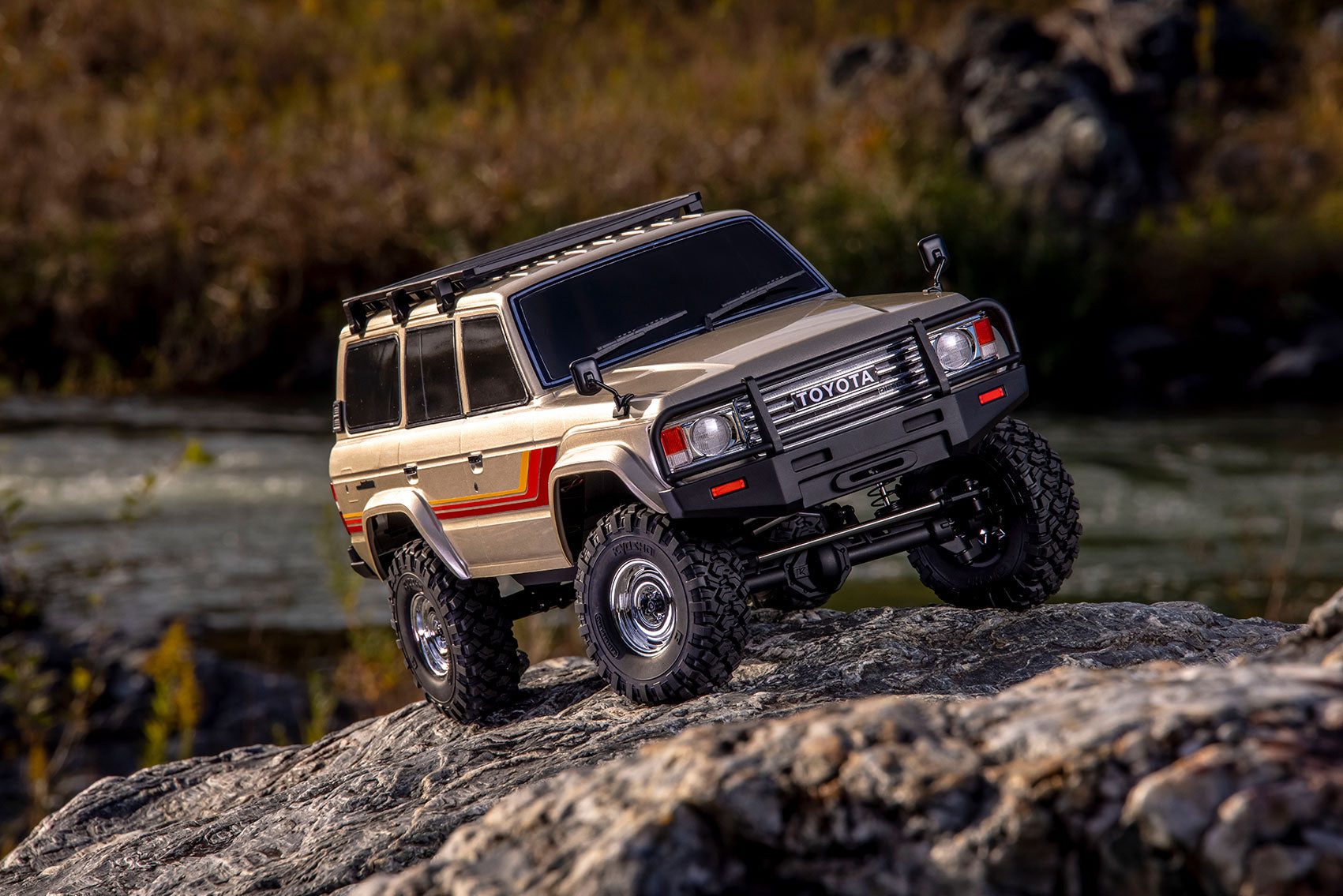

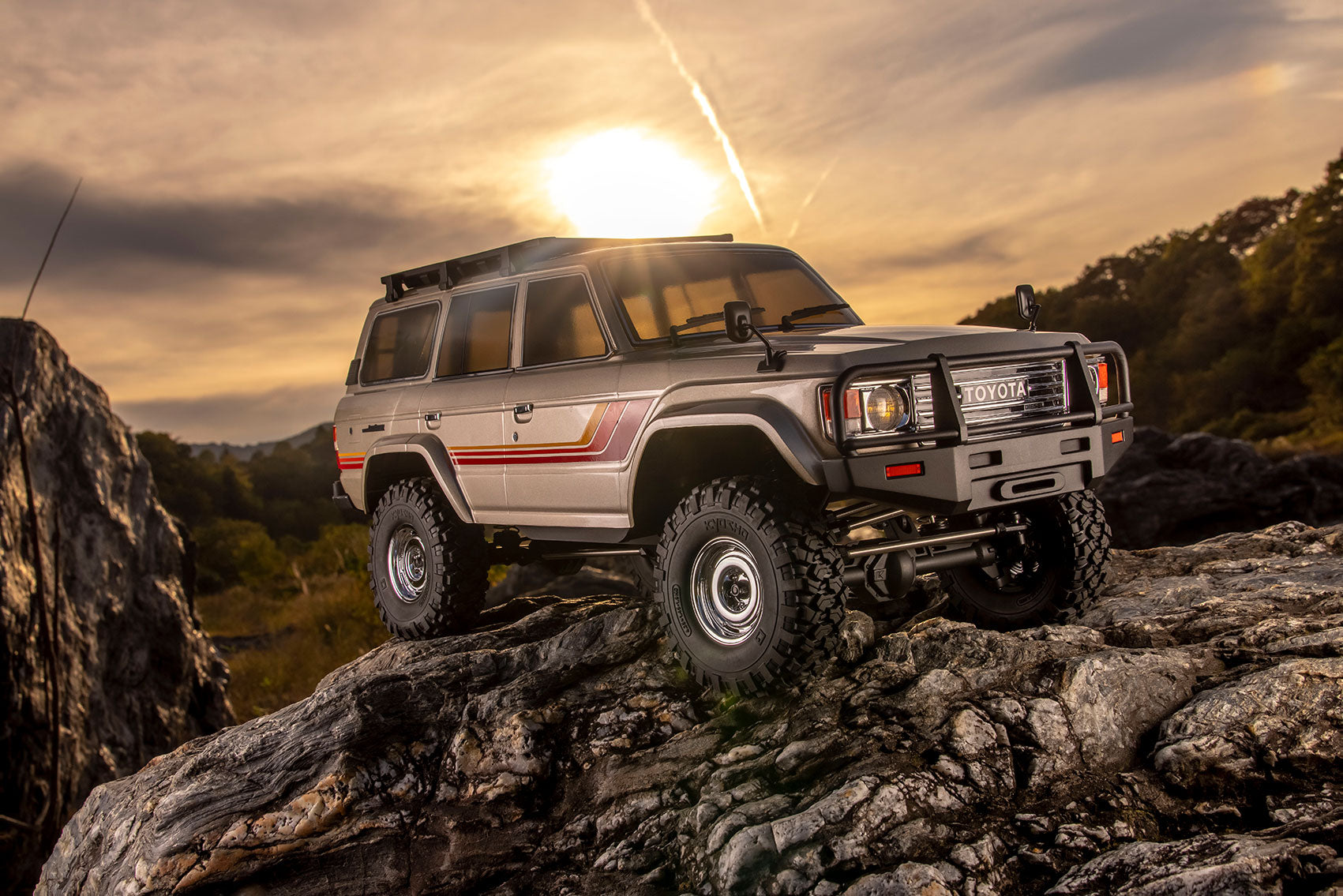

The Kyosho 1/10 Toyota Land Cruiser 60 KC10 is a highly detailed scale crawler designed to accurately reproduce the legendary Toyota Land Cruiser 60 series in both appearance and driving performance. As an officially Toyota licensed Readyset, this model combines authentic scale realism with modern RC technology and is suitable for both demanding crawling terrain and realistic scale driving.

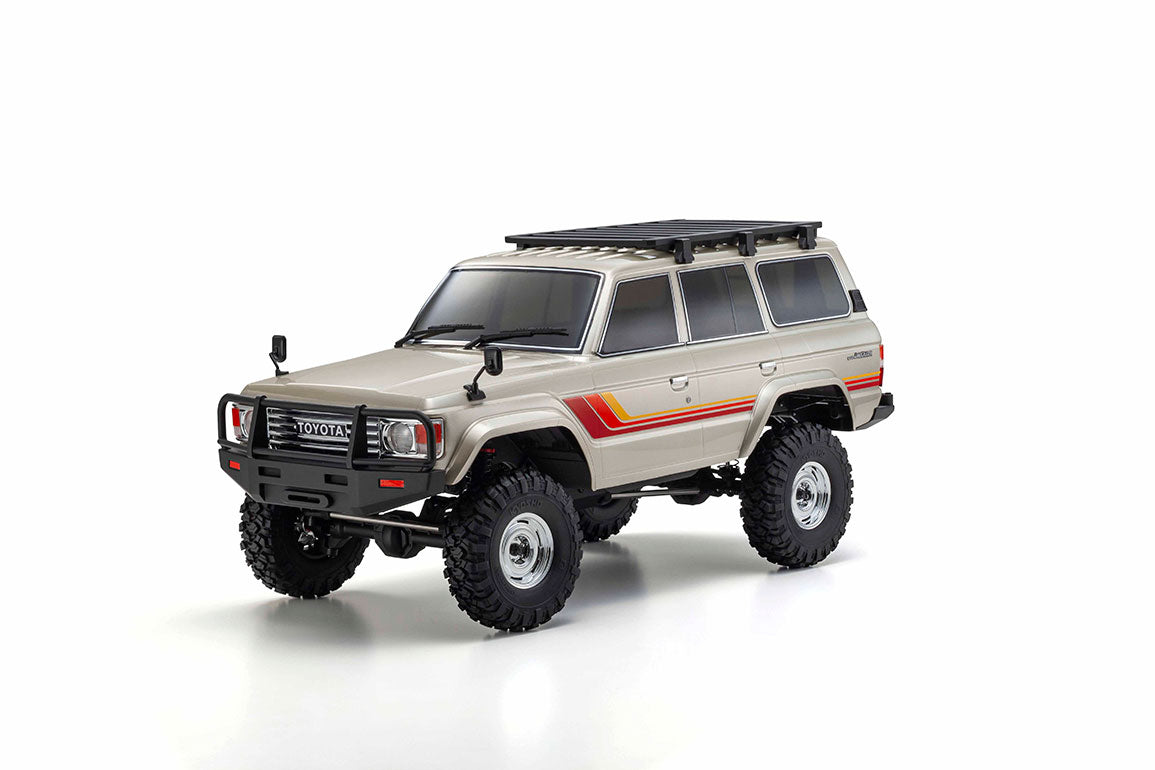

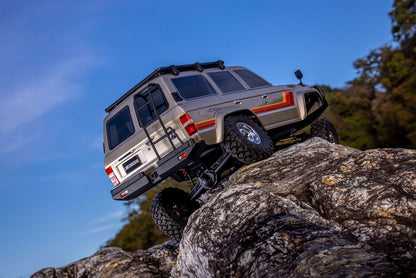

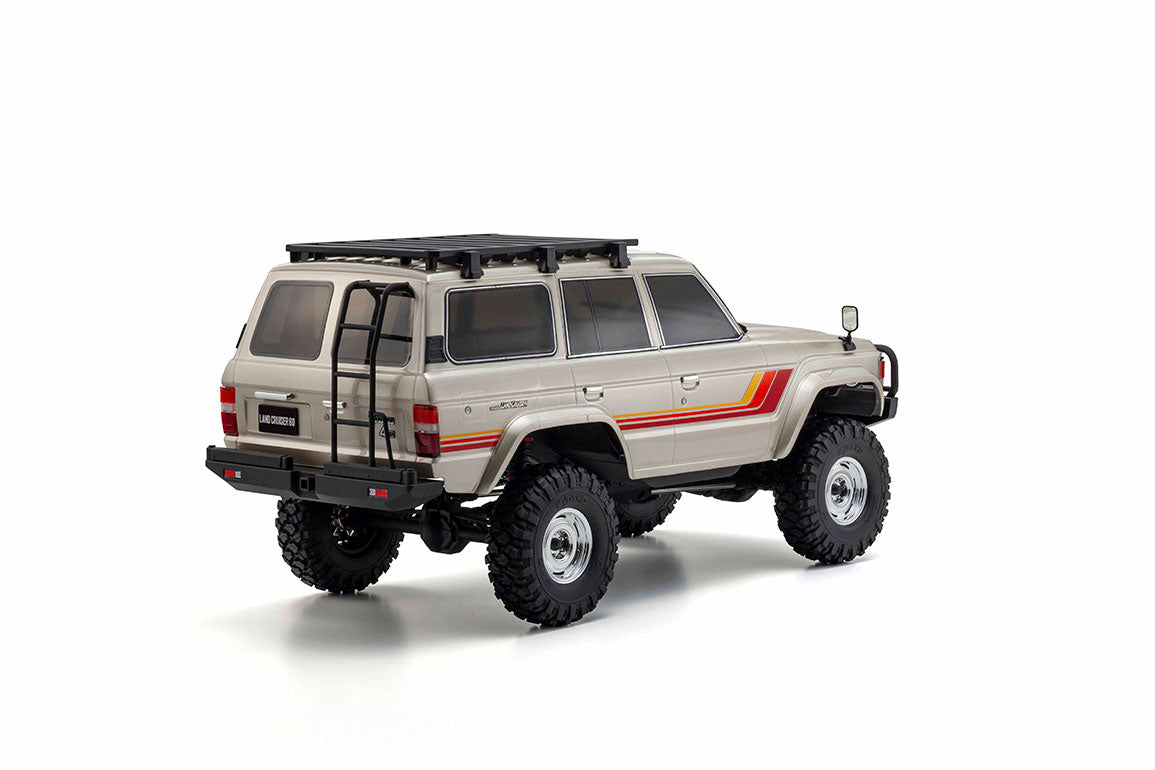

The factory-finished Ultra Scale Body Plus polycarbonate body is pre-painted and features an exceptional level of detail. Scale components include a detailed front grille, exterior mirrors, windshield wipers, roof rack, rear ladder, door handles and realistic bumpers. The newly developed clipless body mounting system ensures a clean exterior without visible body clips and allows fast access to the chassis for battery changes and maintenance.

At the core of the vehicle is the newly developed KC10 ladder frame chassis, specifically engineered for scale crawling. The rigid steel frame provides high torsional rigidity, while solid axles front and rear, combined with a full-time 4WD drivetrain with locked differentials (spool), deliver maximum traction on rough terrain. The optimized suspension geometry with oil-filled shock absorbers ensures smooth articulation and consistent tire contact.

Power is supplied by a G32L brushed 550-size motor (32T), controlled by a waterproof electronic speed controller. Steering is handled by a powerful 15 kg metal gear servo with 25T spline, offering precise control even under heavy load. Grip is provided by soft KC10 all-terrain tires, mounted on realistic 1.9-inch beadlock wheels, optimized for rocks, dirt and uneven surfaces.

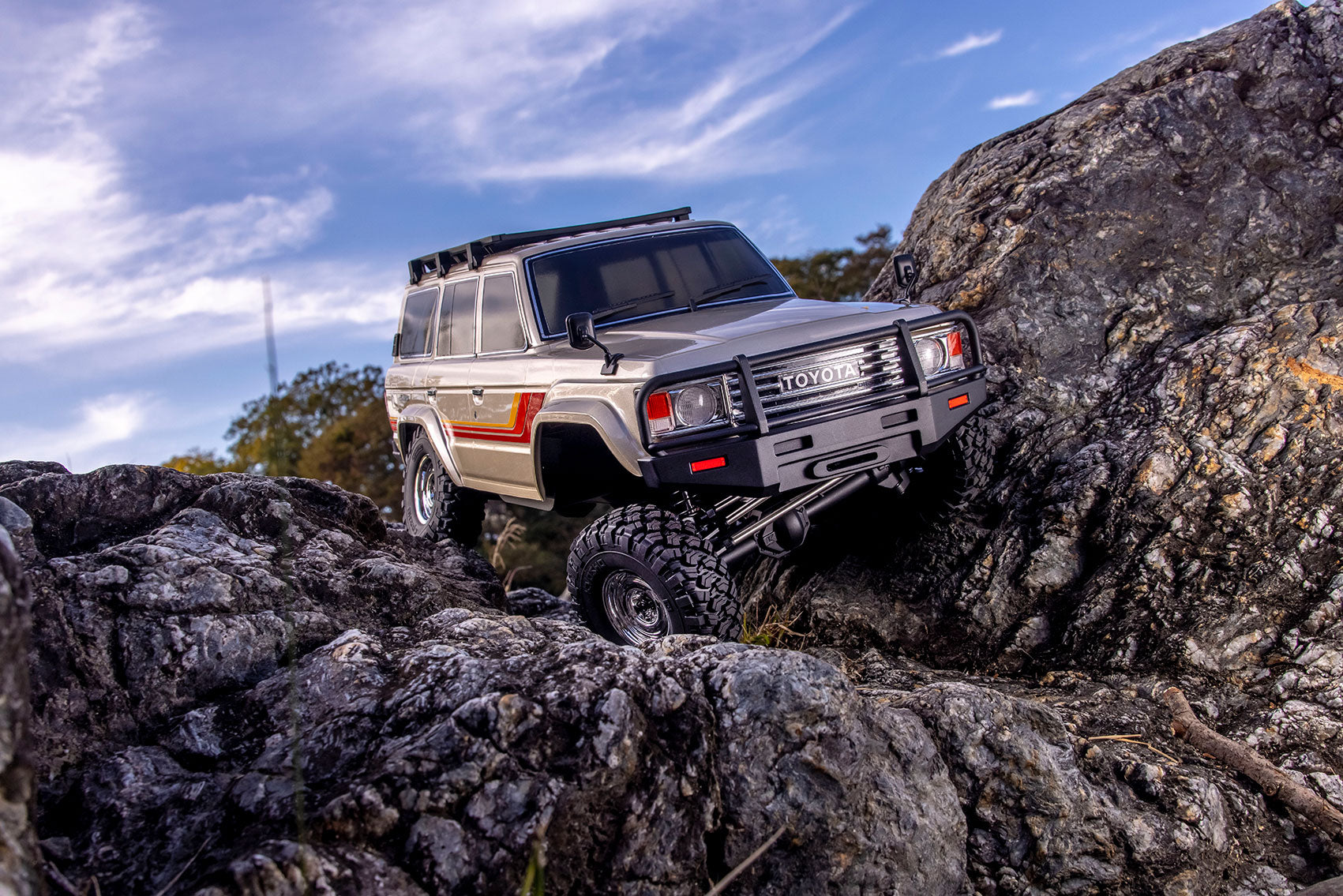

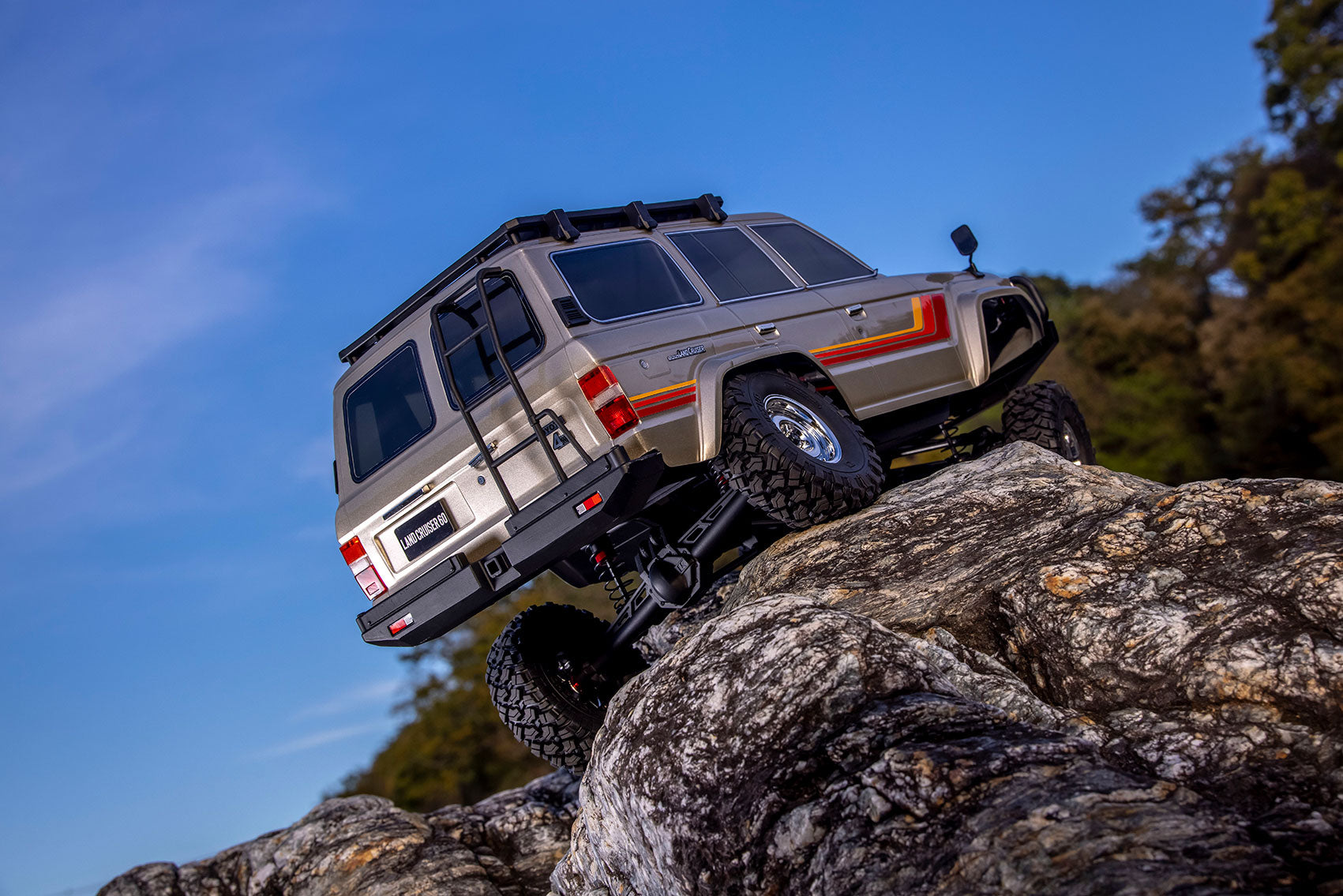

With its impressive approach, departure and breakover angles, as well as excellent side-hill stability, the Toyota Land Cruiser 60 KC10 delivers outstanding crawling performance while maintaining true scale proportions.

Technical Highlights

• Scale: 1:10
• Drive system: Full-time 4WD
• Chassis: KC10 ladder frame
• Axles: Solid front and rear
• Motor: G32L brushed 550 (32T)
• Steering servo: 15 kg metal gear, 25T
• Shock absorbers: Oil-filled
• Tires: KC10 all-terrain
• Wheels: 1.9-inch beadlock
• Differentials: Locked (spool)
• Body: Ultra Scale Body Plus, factory painted
• Body mounting: Clipless system
• License: Official Toyota licensed product

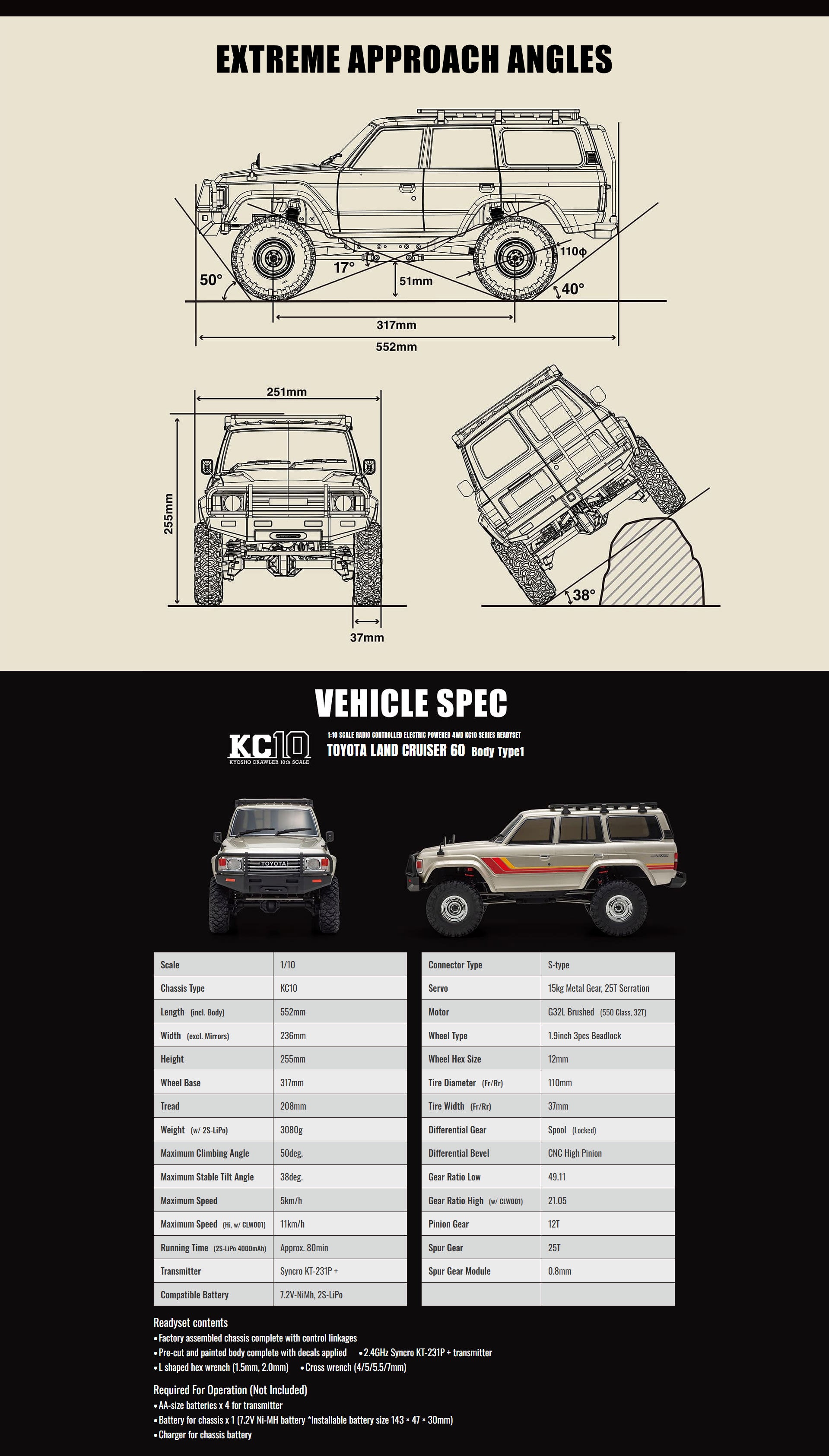

Dimensions & Performance

• Length: 552 mm
• Width: 236 mm
• Height: 255 mm
• Wheelbase: 317 mm
• Weight (without battery): approx. 3080 g
• Ground clearance: approx. 51 mm
• Maximum climbing angle: approx. 50°
• Maximum side tilt angle: approx. 38°
• Speed: approx. 5 km/h (low gear)
• Runtime: approx. 80 minutes (2S LiPo 4000 mAh)

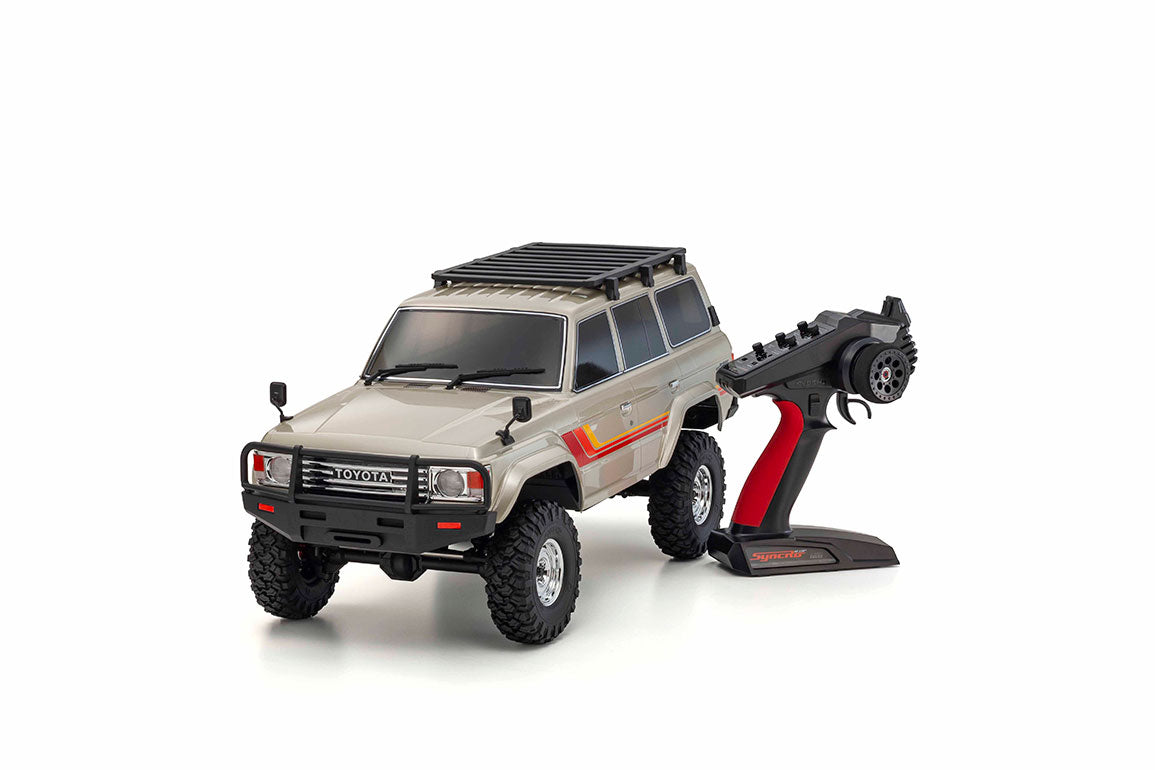

Box Contents (Readyset)

• Fully assembled KC10 chassis
• Factory-painted Toyota Land Cruiser 60 body
• G32L 550 brushed motor
• Electronic speed controller (ESC)
• 15 kg steering servo
• Kyosho Syncro KT-231P+ 2.4 GHz transmitter
• Assembly tools
• Instruction manual

Required for Operation (Not Included)

• Drive battery (7.2 V NiMH or 2S LiPo)
• Compatible battery charger
• 4 × AA batteries for transmitter
