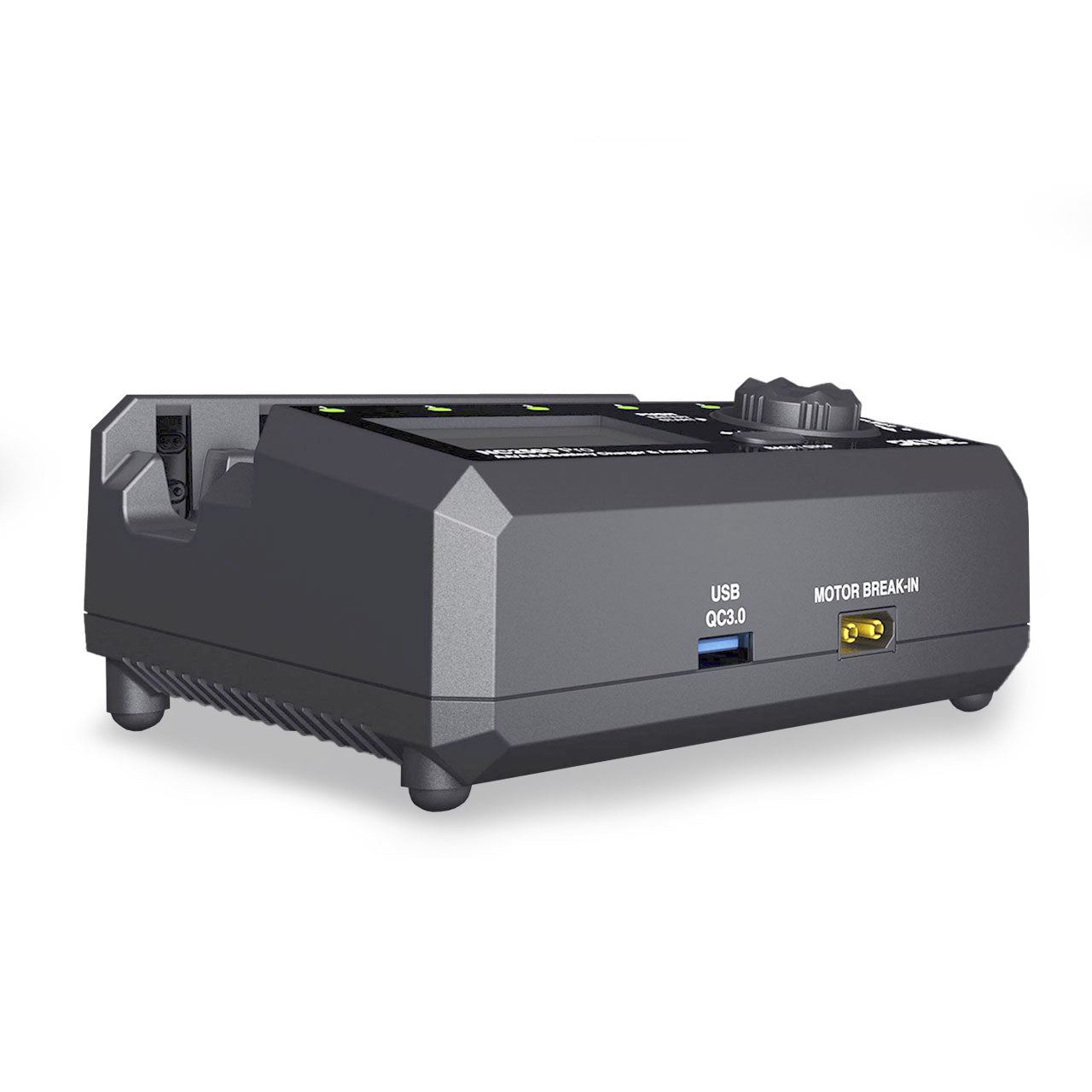

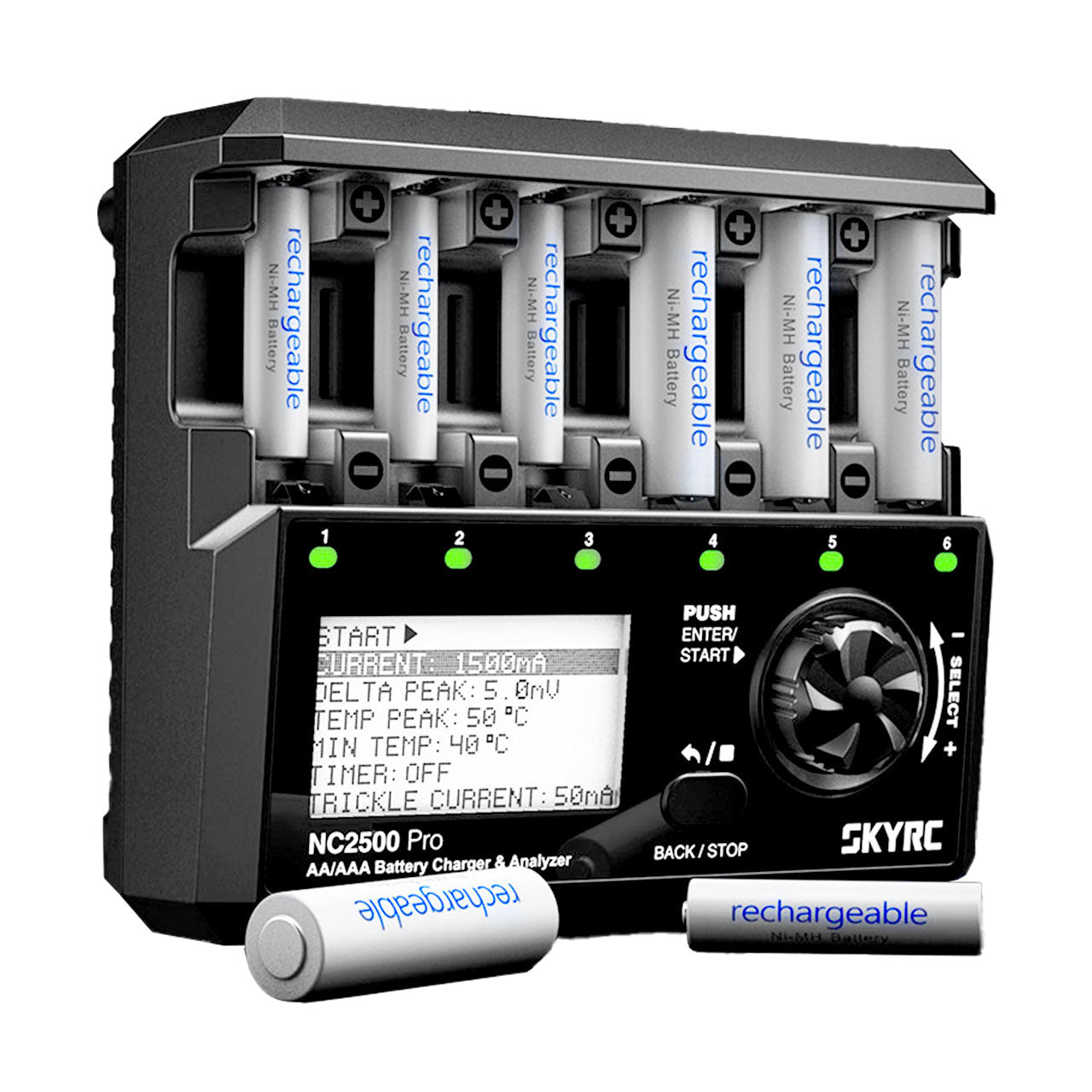

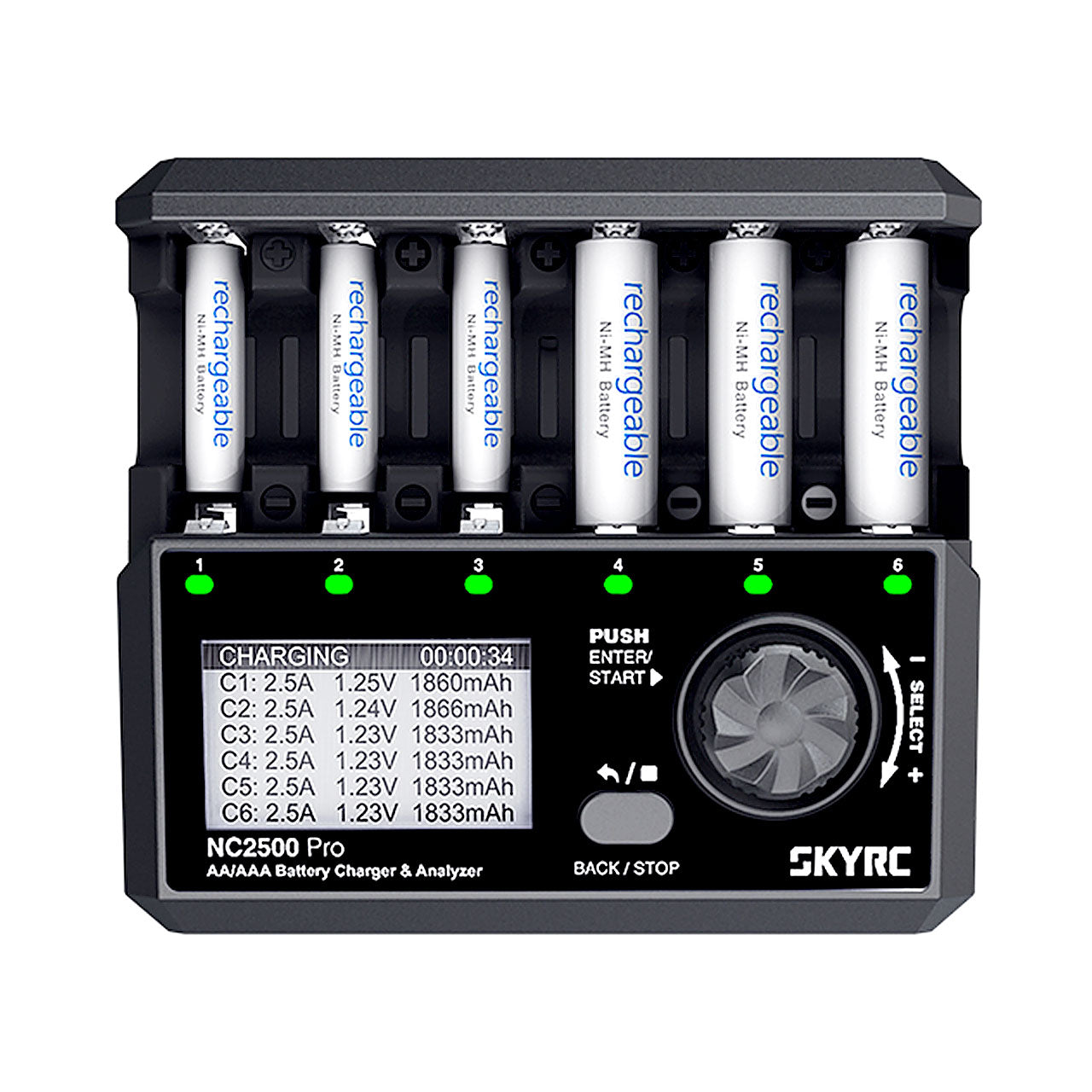

SkyRC NC2500 Pro charger for 6× AA / AAA NiMH & NiCd

The SkyRC NC2500 Pro is a powerful professional charger for AA and AAA NiMH and NiCd batteries , specifically designed for ambitious RC users, racers, and technology enthusiasts. With six fully independent charging slots, up to six batteries can be charged, discharged, or analyzed simultaneously and individually.

Thanks to USB QC3.0 fast charging technology , the NC2500 Pro charges significantly faster than conventional chargers and achieves charging currents of up to 2.5A per slot . The innovative step charging intelligently adjusts the charging current to the battery's state of charge and internal resistance – for maximum performance, battery protection, and lifespan.

A real highlight is the motor break-in function , which allows for controlled break-in of brushed motors . Ideal for bringing motors back to optimal performance after extended periods of inactivity – a clear advantage for RC racers.

The large display, the user-friendly rotary button and the clear display of all relevant parameters make operation intuitive and precise.

Operating modes

• Charge – Charging batteries
• Discharge – Discharging batteries
• Refresh & Analyze – Capacity measurement and battery analysis
  (ideal for storage of 2 weeks to 3 months)
• Break-in – Activation of batteries through charge/discharge cycles
  (recommended for storage longer than 3 months)

Features & Highlights

• 6 independent charging slots with status LEDs
• Suitable for NiMH & NiCd batteries (AA / AAA)
• Max. 2.5A charging current per slot
• Step charging with automatic current adjustment
• Adjustable -Delta V cutoff criterion
• Motor break-in function for brushed motors
• USB QC3.0 Fast Charging
• Reverse polarity and overheating protection
• User-friendly control with rotary dial
• Clear display with all relevant data

Display indicators

• Electricity
• Tension
• capacity
• Elapsed time
• Active operating mode

Technical data

charger

• Input voltage: DC 12V / 3A
• Compatible batteries: NiMH / NiCd
• Battery sizes: AA / AAA
• Charging current: 0.1 – 2.5 A
• Discharge current: 0.1 – 1.5 A
• Cut-off voltage (discharge): 0.8 – 1.0 V (adjustable)
• -Delta V: 1 – 8 mV (adjustable)
• Maintenance charge: 30 – 99 mA / OFF
• Overheating protection: 55 – 65 °C (adjustable)
• USB output: QC3.0
  • 5V / 3A
  • 9V / 2A
  • max. 18 W
• Dimensions: 148 × 135 × 65 mm
• Weight: approx. 600 g

Engine break-in

• Voltage: 0.5 – 6 V
• Current limit: 0.1 – 2.0 A
• Direction of travel: Car / Forward / Backward
• Duration: 1 – 60 minutes (adjustable)

Scope of delivery

• SkyRC NC2500 Pro Charger
• 12V / 3A power adapter
• User manual (English)

Typical applications

• RC transmitter & receiver batteries
• AA / AAA NiMH & NiCd rechargeable batteries
• RC Racing & Training
• Motor break-in for brushed motors
• Workshop & Hobby Area
